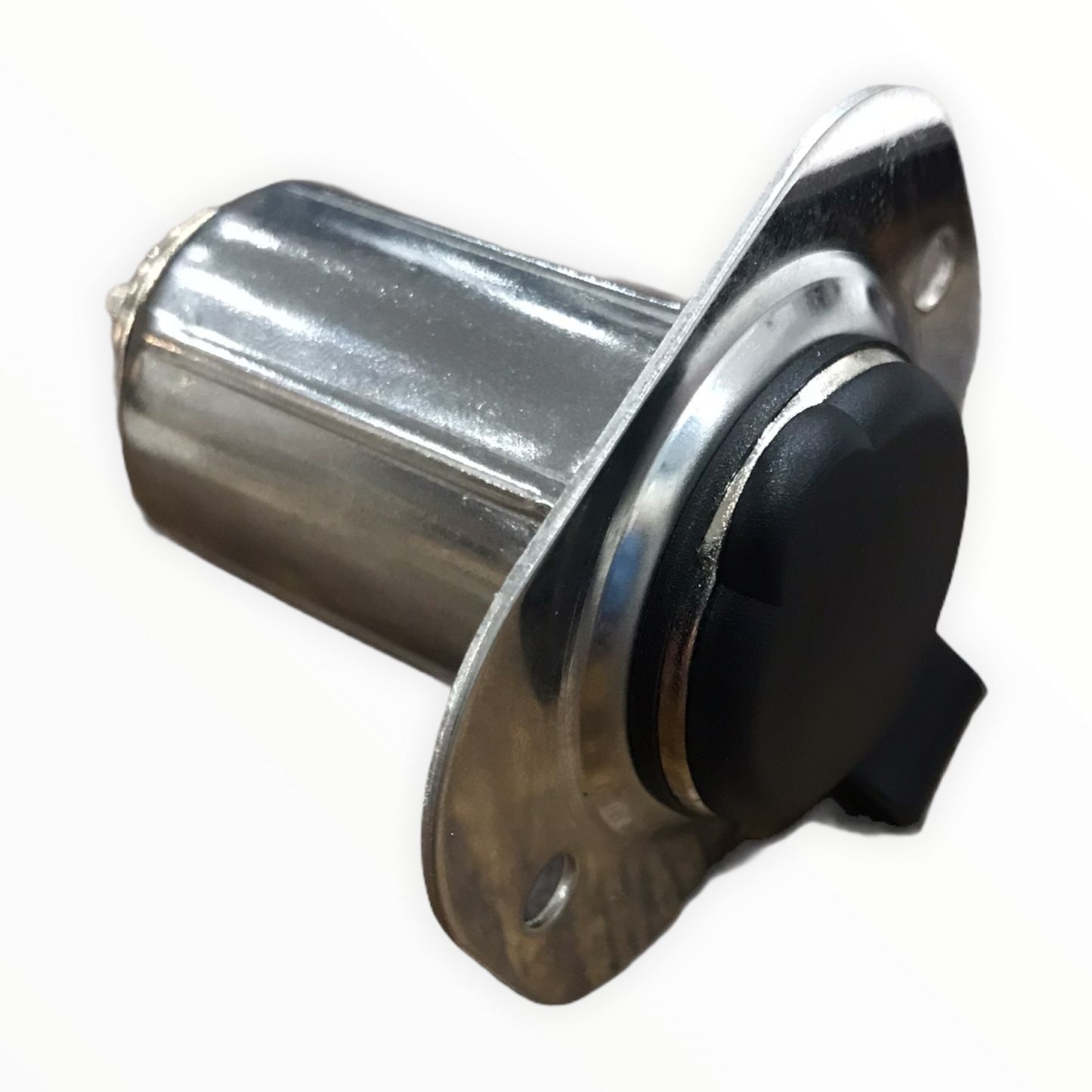

Stainless Steel 12v Power Socket

Stainless steel 12v power socket with black moulded cap. Socket can be mounted in non-metallic panels up to 1/4" thick or metallic panels up to 1/8" thick without the front plate.

Specifications:

• Front plate overall dimensions: 2" W x 1-1/2" H
• 7/8" diameter hole required for panels 1/4" thick or less
• 1-1/8" diameter hole required for panels thicker than 1/4"
• Minimum of 2-1/4" clearance required behind mounting location
• Rated up to 16 Amps
