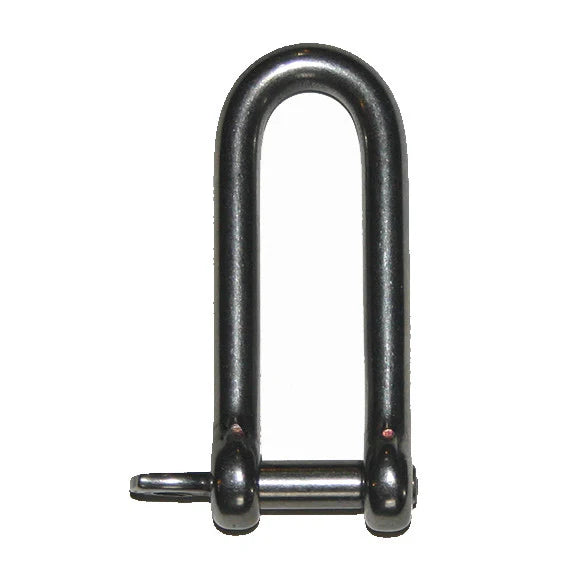

Nautos Long D-Shackles are made from AISI 316 stainless steel. The shackle is cast and the pin is forged. They are designed for applications where a strong wrench tightening pin is required together with a long reach shackle opening.
One fixing per pack except 4mm which has two fixings per pack.
Specification
| Size |
Pin diameter (mm) |
Shackle opening width (mm) |
Shackle Length (mm) |
| 4mm |
4mm |
8mm |
32mm |
| 6mm |
6mm |
12mm |
48mm |
| 8mm |
8mm |
16mm |
64mm |
| 10mm |
10mm |
20mm |
80mm |
Additional sizes are available - please contact us if you would like us to order an option which is not currently in stock.
