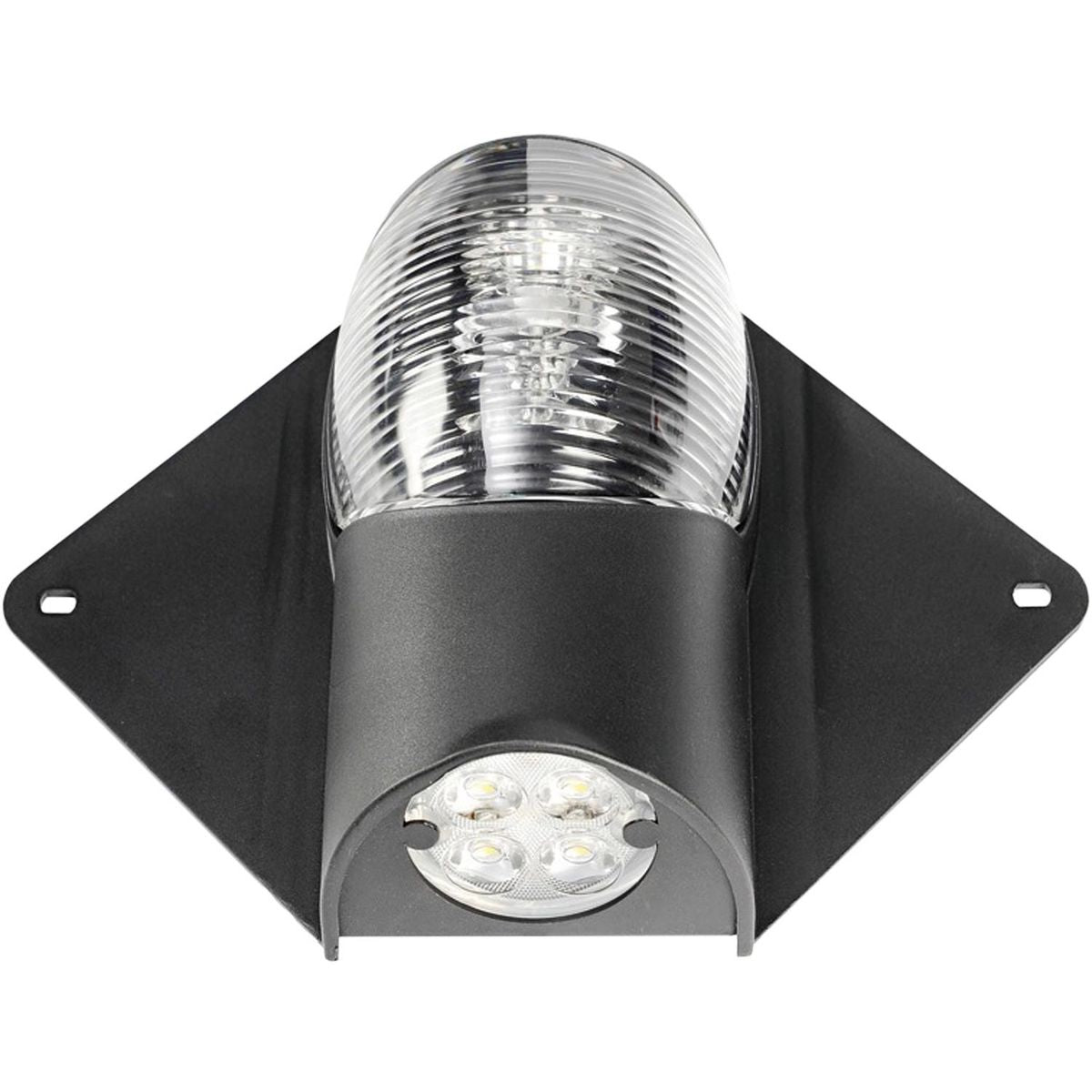

The Osculati LED Combo Masthead/Deck Light is suitable for boats up to20m. It has a flexible plastic mounting plate which allows the unit to wrap around the mast for easy mounting.
Wiring Instructions: Yellow wire is the masthead light (steaming Light), the brown wire is the foredeck light, and the white wire is the negative.
Case Colour
Black
Material
Techno-polymer Body
Bulb
LED
Primary Construction
Plastic
Suitable For
Vessels under 20 Metres / 65.6 feet
Bulb Description
HD LEDs
Light Arc
225 Degrees
Light Colour
Masthead White & White Deck Light
Visibility
3 Nautical Miles
Brand
Osculati
Voltage Description
12V DC, 24V DC (9-33V)
Wattage
Deck Light: 4 x 1W LEDs
Amps Description
0.37A at 12V
Approvals
RINA ELE199511CS003 Type Testing, COLREG '72, ABYC A-16, CE
Height Description
140mm (5-1/2")
Width
195mm
Length
Cable: 300mm
Operating Temperature
-20°C to +60°C
