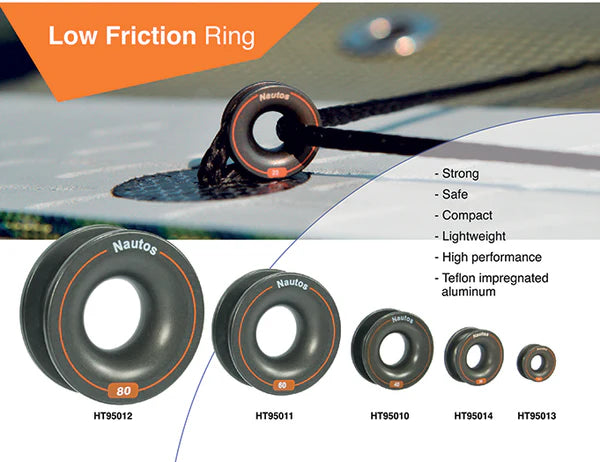

Nautos Low Friction Rings/Tie Sheaves are control line eyes which are engineered to complement new high strength aramid ropes in a high strength, low weight environment. They include Teflon to improve performance and are suitable for high load areas.
Several ring diameters are available:

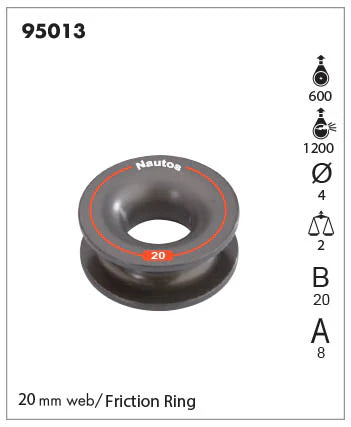

Item code: 95013 (20mm diameter)

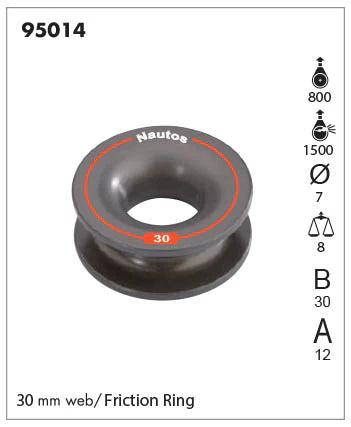

Item code: 95014 (30mm diameter)

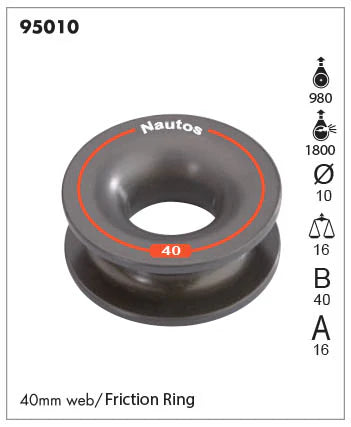

Item code: 95010 (40mm diameter)

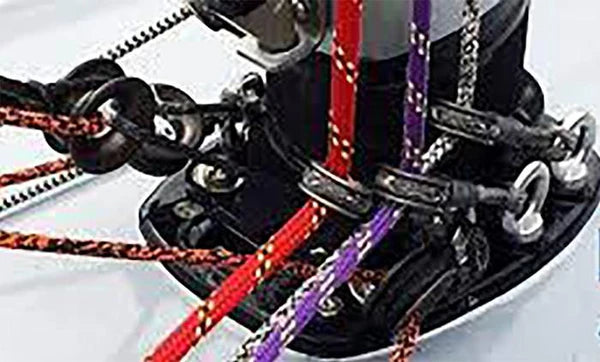

Nautos Low Friction Rings/Tie Sheaves are suitable for use as halyard leads, high static loads, Vang cascades and Cunningham systems
Material: marine grade aluminium
Diameter: 20 to 40mm - see table

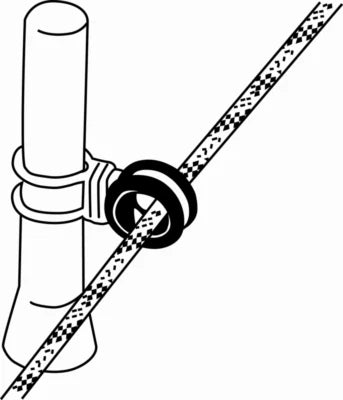

See table and illustrations for specific technical data
Item code
Diameter (mm)
Max line diameter (mm)
Safe working load (kg)
Breaking load (kg)
Weight (g)
95013
20mm
4
600
1 200
2
95014
30mm
8
800
1 500
8
95010
40mm
10
900
1 800
17.5
